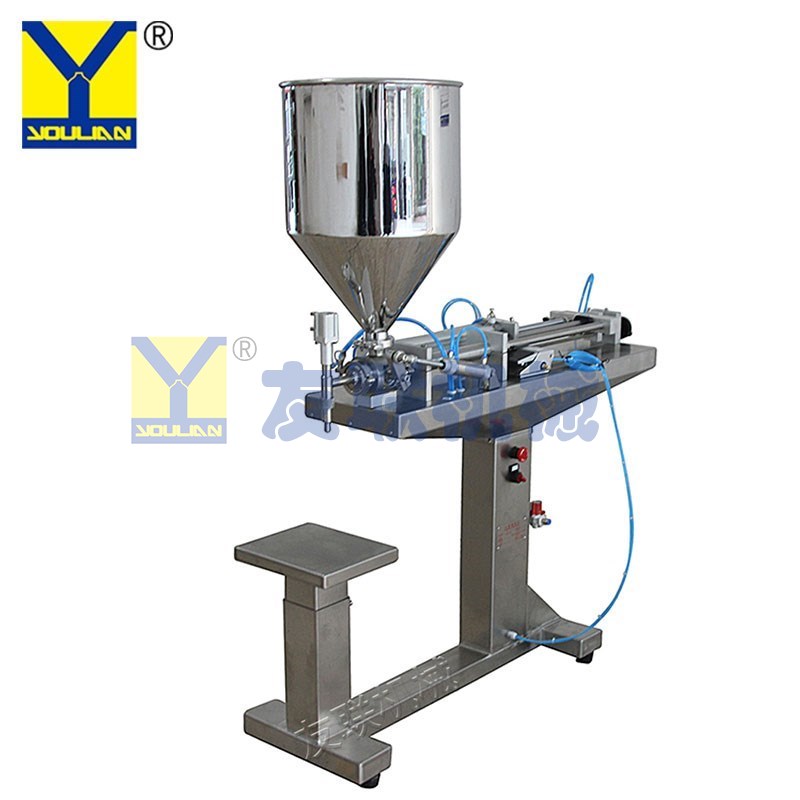

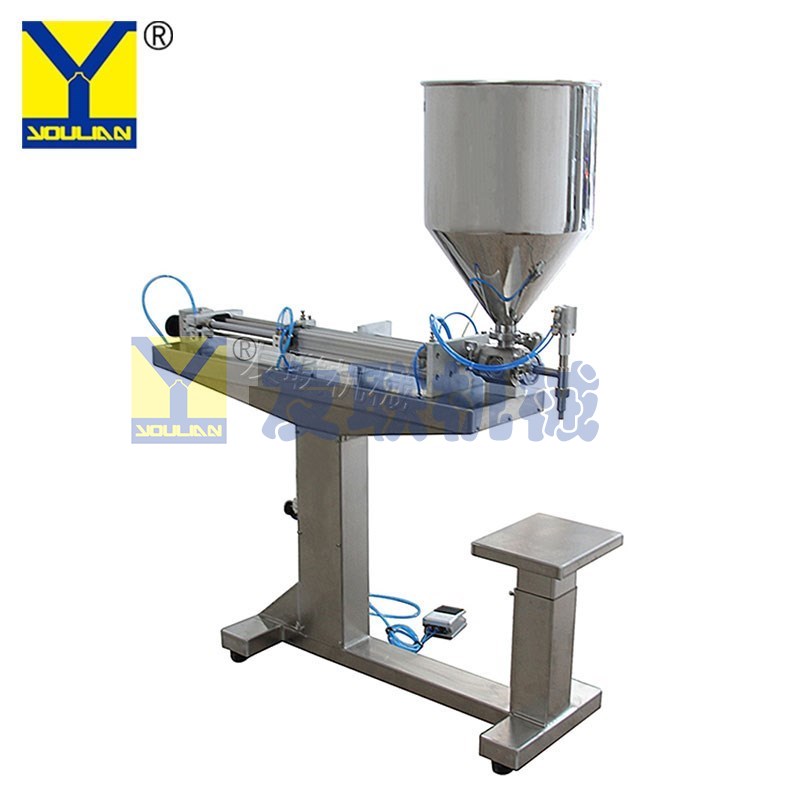

Semi-automatic Liquid & Paste filling machine(Standing) isa semi-automatic quantitative paste/liquid filling machine for the quantitative filling of liquids, pastes and other substances in the chemical, food, daily chemical, pharmaceutical, pesticide, lubricant and other industries. Such as honey, chili sauce, tomato sauce, toothpaste, glass glue, etc.
Semi-automatic Liquid & Paste filling machine(Standing) isa semi-automatic quantitative paste/liquid filling machine for the quantitative filling of liquids, pastes and other substances in the chemical, food, daily chemical, pharmaceutical, pesticide, lubricant and other industries. Such as honey, chili sauce, tomato sauce, toothpaste, glass glue, etc.
1.SMC pneumatic components from Japan, high quality;
2.Floor-standing structure, small adjustable workbench;
3.It can be equipped with a hopper with functions such as stirring and heat preservation to meet the production requirements of users' products;
4.Easy to disassemble and clean, automatic and manual, can work with the assembly line;
5.Unique quiet work design to create a good working environment;
6.The cylinder block, casing and hopper are made of 304/316 stainless steel material, and the piston is made of PTFE material, which meets GMP requirements;
7.Filling volume and filling speed can be adjusted arbitrarily, foot switch and automatic filling function, high precision, simple structure and convenient operation;
8.Food grade fluoro rubber sealing ring can be used, which has good corrosion resistance, high temperature resistance and wear resistance, and can also be used with ordinary materials.
|
Model |
G1LGD |
|
Name |
filling machine |
|
Filling Range |
5-100ml 10-280ml 50-500ml 100-1000ml 500-2800ml 1000-5000ml |
|
Capacity |
10-20 PCS /min |
|
Hopper capacity |
30L/40L(Can be customized) |
|
Working Pressure |
0.4-0.6Mpa |
|
Filling Accuracy |
±1% |
|
Power supply |
220V/110V 50HZ/60HZ |
|
Power |
W |
|
Machine size (L*W*H) |
(1150*420*920 ) 5-100ml ( 1340*450*920) 10-280ml (1340*450*920) 50-500ml (1340*450*920) 100-1000ml (1500*480*1030) 300-2000ml ( ) 500-2800ml ( ) 1000-5000ml |
|
Package |
Export Carton Case |
|
Warranty |
1 year |
Welcome to our website! Please feel free to send us your inquiry in detail, we will reply you as soon as possible.
